Featured Module

Millennium ETH — Ethernet Pulse-Rate Totalizer & I/O

Get pulse, digital & analog data onto any network

A network-addressable pulse-rate totalizer and I/O module — the simplest way to get pulse, digital, and analog data onto any Ethernet network. Supports Modbus TCP and ASCII/TCP protocols.

0.5 Hz – 30 kHz optically isolated pulse input
56-bit non-volatile totalizer (~76,000 years @ 30 kHz)
Modbus TCP (port 502) or ASCII/TCP (port 5000)
4× analog in • 3× digital in • 3× digital out
12 or 24 VDC input • 10/100 Ethernet RJ45
Board-level PCB • Optional DIN-rail mount

Full Specifications → ▶ Instructional Video

Complete Lineup

All Modules

USB Pulse Rate Totalizer — Millennium

Compact, optically isolated USB I/O module for connecting pulse-output sensors to any USB-equipped host.

0.5 Hz – 30 kHz pulse input
Non-volatile 281-trillion count totalizer
3× analog in, 2× digital in, 3× digital out
Opto-isolated USB Mini-B
Board-level module design

Full Specifications →

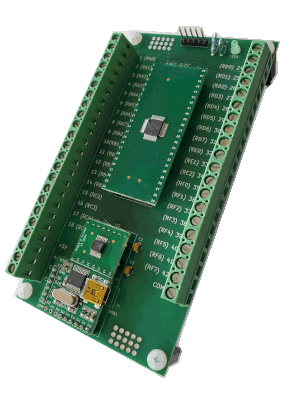

USB Microcontroller — PIC18F57K42

A USB-connected microcontroller module based on the Microchip PIC18F57K42 for embedded control and data acquisition.

PIC18F57K42 microcontroller
USB interface for PC connectivity
Flexible I/O for custom applications
Suitable for embedded designs

More Details →

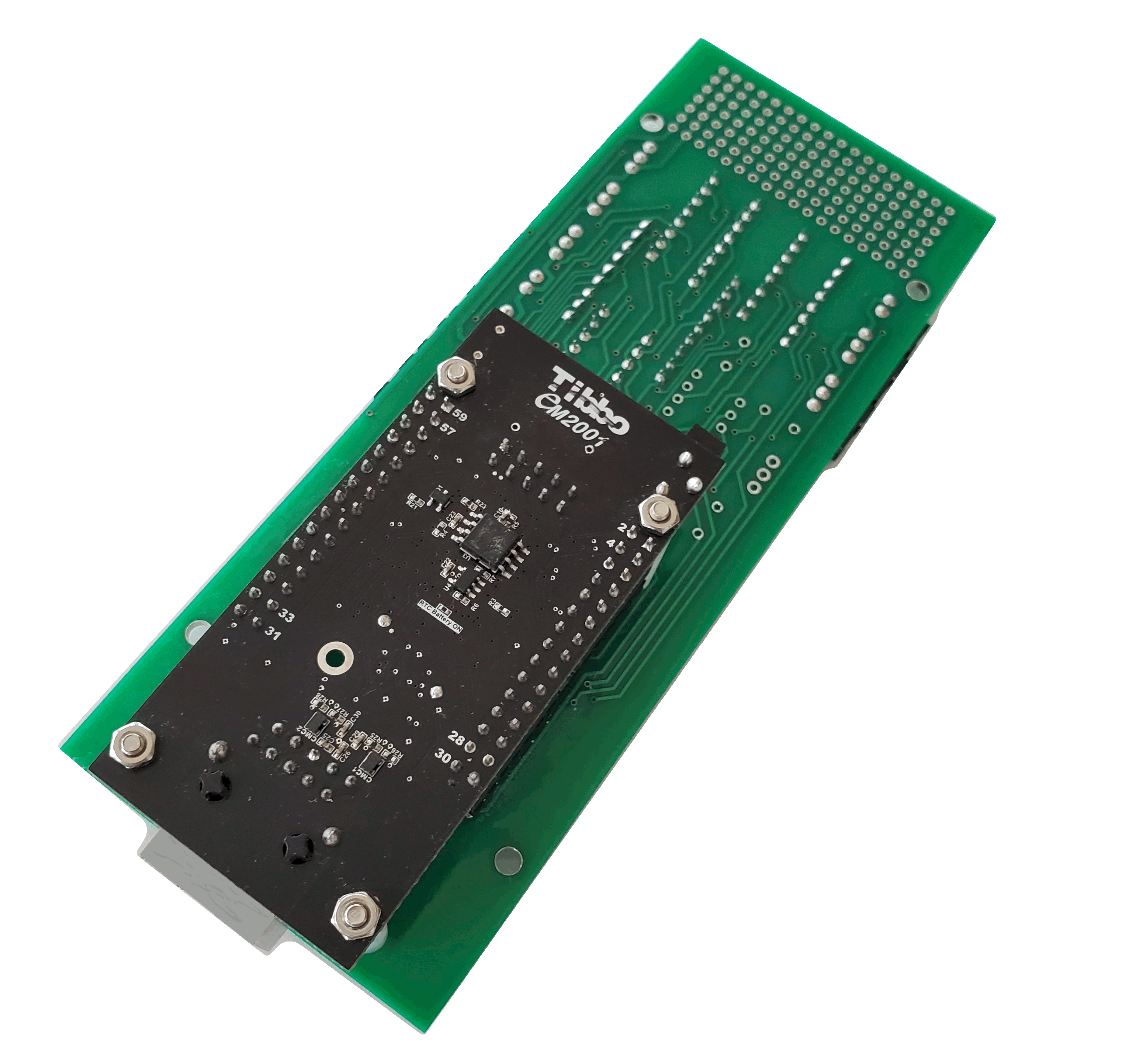

Ethernet Microcontroller — Tibbo EM2001

Ethernet-connected microcontroller module based on the Tibbo EM2001 for networked embedded control and remote I/O.

Tibbo EM2001 microcontroller
Ethernet interface for network connectivity
Remote monitoring and control
Suitable for embedded designs

More Details →

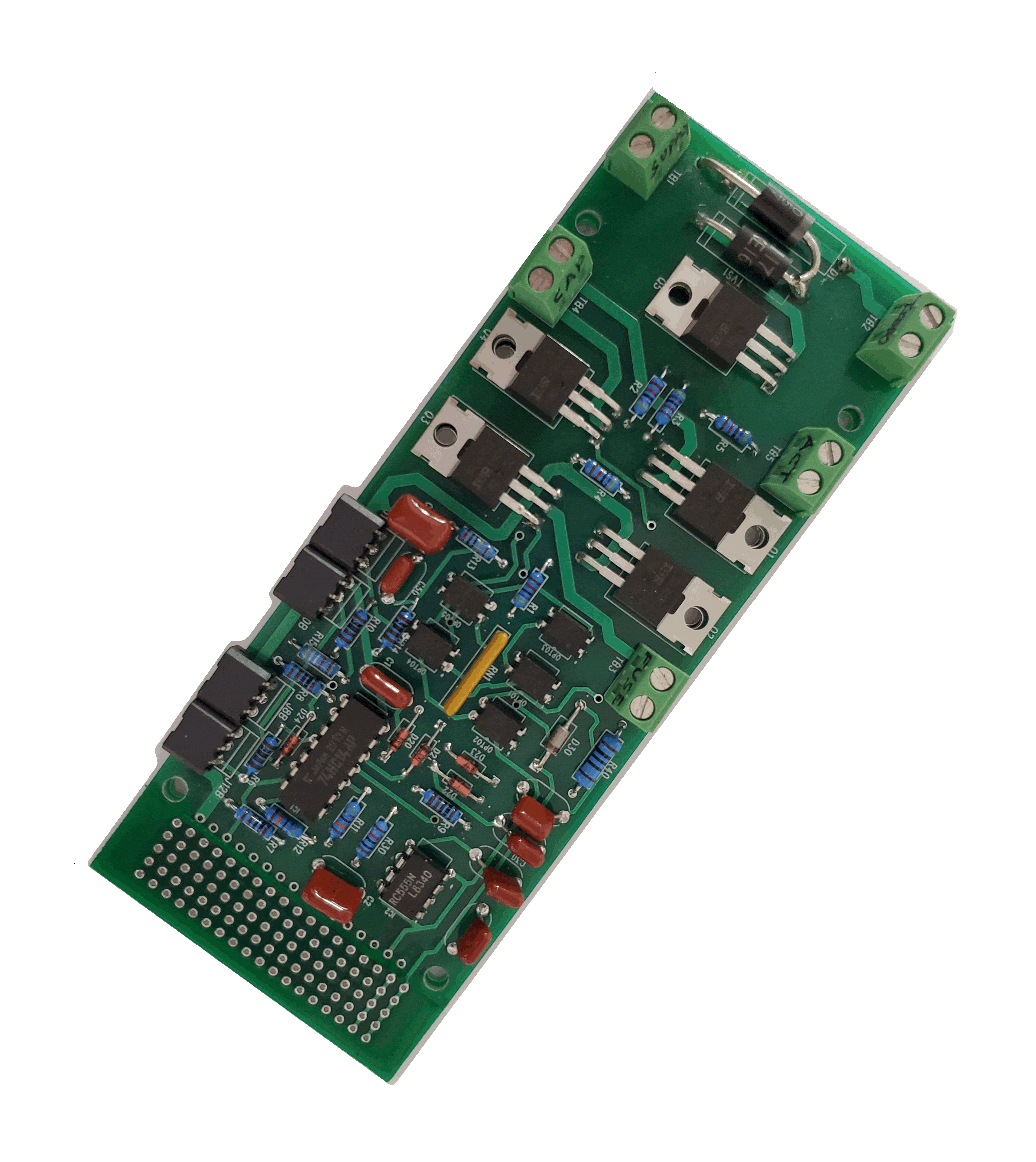

DC Motor H-Bridge / Solenoid Control

A DC motor H-bridge and solenoid control module for bidirectional motor drive and solenoid switching applications.

Bidirectional DC motor control
H-bridge topology for forward/reverse
Solenoid switching capability
Suitable for embedded designs

More Details →
