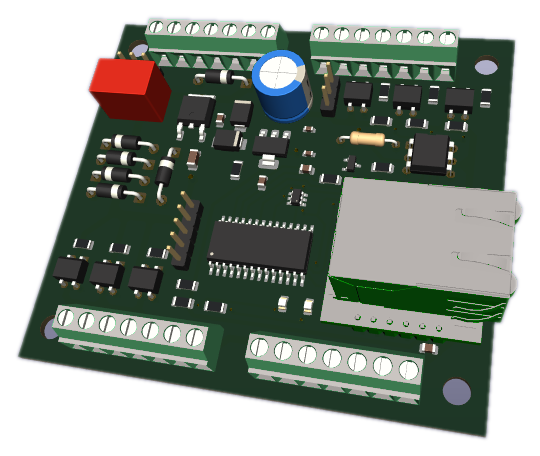

A network-addressable pulse-rate totalizer and I/O module that connects pulse-output sensors and discrete signals directly to any Ethernet network. Counts and measures pulse rate on an optically isolated input, provides digital and analog I/O, and is accessed over Ethernet using either a simple ASCII/TCP protocol or Modbus TCP — selected by an onboard jumper.
A 56-bit non-volatile totalizer means the Millennium ETH never loses count through a power cycle and effectively never overflows. Rate calibration is field-adjustable and stored non-volatile. Firmware is field-updatable over Ethernet via a resident bootloader.
Available for OEM integration and private label. Volume pricing, DIN-rail or board-level supply available.
| Signal | 5 to 24 VDC, optically isolated |
| Frequency Range | 0.5 Hz to 30 kHz |
| Min. Pulse Width | > 33.33 µs high / low |
| Totalizer | 56-bit non-volatile; retained through power loss |
| Max Count | 72,057,594,037,927,935 |
| Count Longevity | ~76,000 yrs @ 30 kHz • ~457,000 yrs @ 5 kHz |
| Rate Measurement | 8 MHz timebase (0.125 µs resolution) |
| Rate Calibration | Field-calibratable; stored non-volatile |
| Digital Inputs | 3 ch, 5–24 VDC, optically isolated |
| Digital Outputs | 3 ch, optically isolated, open-collector |
| Analog Inputs | 4 ch, 0–5 VDC, 12-bit (0–4,095) |
| Isolation | Optical on pulse, digital in & digital out. Separate user commons for inputs and outputs. |
| Interface | Ethernet 10/100, RJ45 |
| Protocols | ASCII/TCP (port 5000) or Modbus TCP (port 502) — jumper selected |
| Modbus Support | Read/Write Coils, Read Input Registers, Write Multiple Registers |
| Default IP | 192.168.1.222 (field configurable) |
| Firmware Update | Field-updatable over Ethernet via bootloader |
| Input Power | 12 or 24 VDC (user selectable) | Current Draw | < 130 mA at 24 VDC |
| Board Size | 72 mm × 80 mm | Form Factor | OEM board-level PCB (no enclosure) |
| Mounting Holes | 4 × 5 mm ID • 70.5 mm × 60 mm spacing | Panel Mounting | Optional DIN-rail mounting |
| Connections | Screw (cage) terminal blocks | ||
| TB1 – Power | |
|---|---|
| Pin | Signal |
| 1 | DC Input |
| 2 | DC Input |
| 3 | (not used) |
| 4 | +12 VDC |
| 5 | (not used) |
| 6 | DC Common |
| 7 | DC Common |
| TB2 – Pulse & Digital In | |
|---|---|
| Pin | Signal |
| 1 | Pulse In |
| 2 | Pulse In Common |
| 3 | Input 1 |
| 4 | Input 2 |
| 5 | Input 3 |
| 6 | USR_COM1 |
| 7 | USR_COM1 |
| TB3 – Digital Out | |
|---|---|
| Pin | Signal |
| 1 | Output 1 (O.C.) |
| 2 | Output 2 (O.C.) |
| 3 | Output 3 (O.C.) |
| 4 | USR_COM2 |
| 5 | (not used) |
| 6 | DC Common |
| 7 | DC Common |
| TB4 – Analog In | |
|---|---|
| Pin | Signal |
| 1 | Analog In 1 |
| 2 | DC Common |
| 3 | Analog In 2 |
| 4 | DC Common |
| 5 | Analog In 3 |
| 6 | DC Common |
| 7 | Analog In 4 |
Interface pulse-output kWh meters to PC-based energy logging, SCADA, or building management systems over standard Ethernet.
Connect turbine, gear, or paddle-wheel flowmeters directly to a network. Modbus TCP makes integration with PLCs and SCADA straightforward.
Non-volatile count survives power loss — ideal for pumps, compressors, fans, conveyor drives, and batch counting on manufacturing lines.
Precise batch totaling for fleet fuel management, chemical dispensing, and lubrication systems over an existing plant Ethernet network.
Feed isolated pulse, analog, and digital data into any Ethernet-connected controller, edge gateway, or cloud IoT platform via Modbus TCP.
Deploy in remote or panel locations — accessible over any IP network. Field-configurable IP and firmware-updatable over Ethernet.
