AMT Ethernet – 6/12 Channel AC Power Control

Solid State MOSFET Design • Standard 19" Rack Mount 2U • Ethernet Communication • Windows 10 / 11

AMT 6/12 Channel AC Power Control - Front View

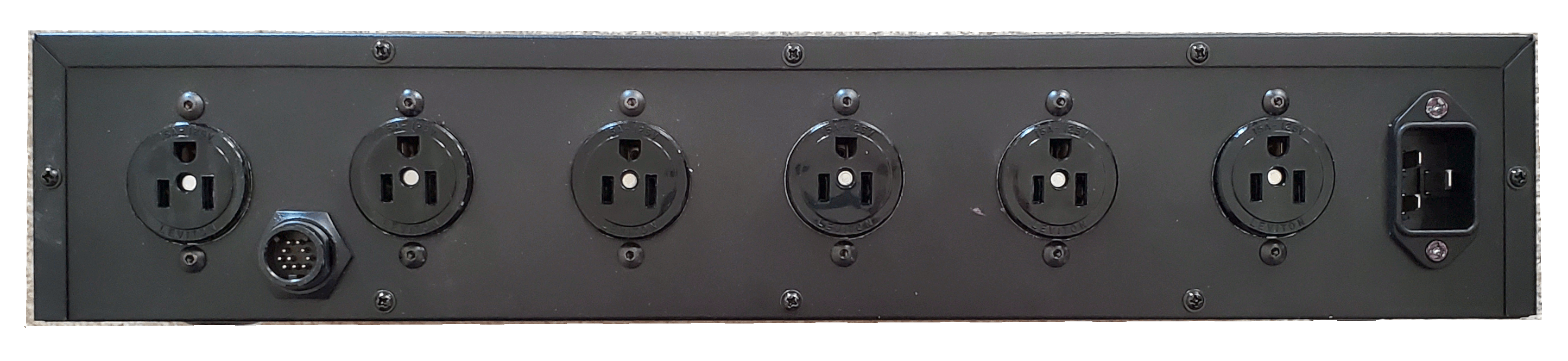

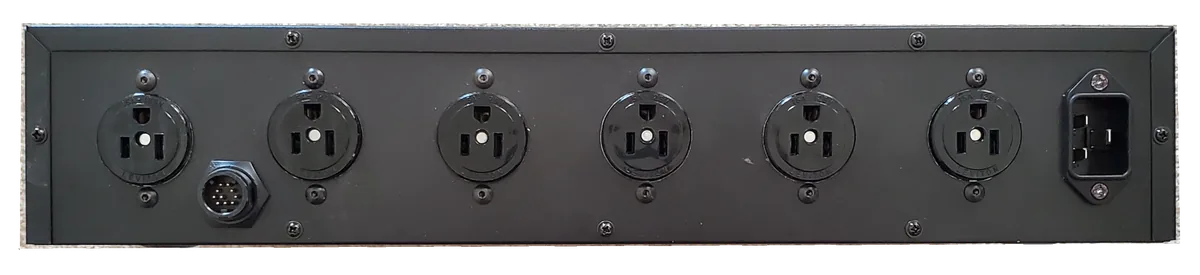

AMT 6/12 Channel AC Power Control - Rear View

Overview

The AMT Ethernet AC Power Control unit provides fully remote, software-driven switching of six 120VAC outlets from any networked Windows PC. Built on a solid-state MOSFET design with no moving parts, the unit mounts in a standard 19" equipment rack (2U) and communicates over Ethernet.

A second unit can be cascaded to expand control to a total of twelve (12) independently switched outlets — all managed from the same PC software application running on Windows 10 or Windows 11.

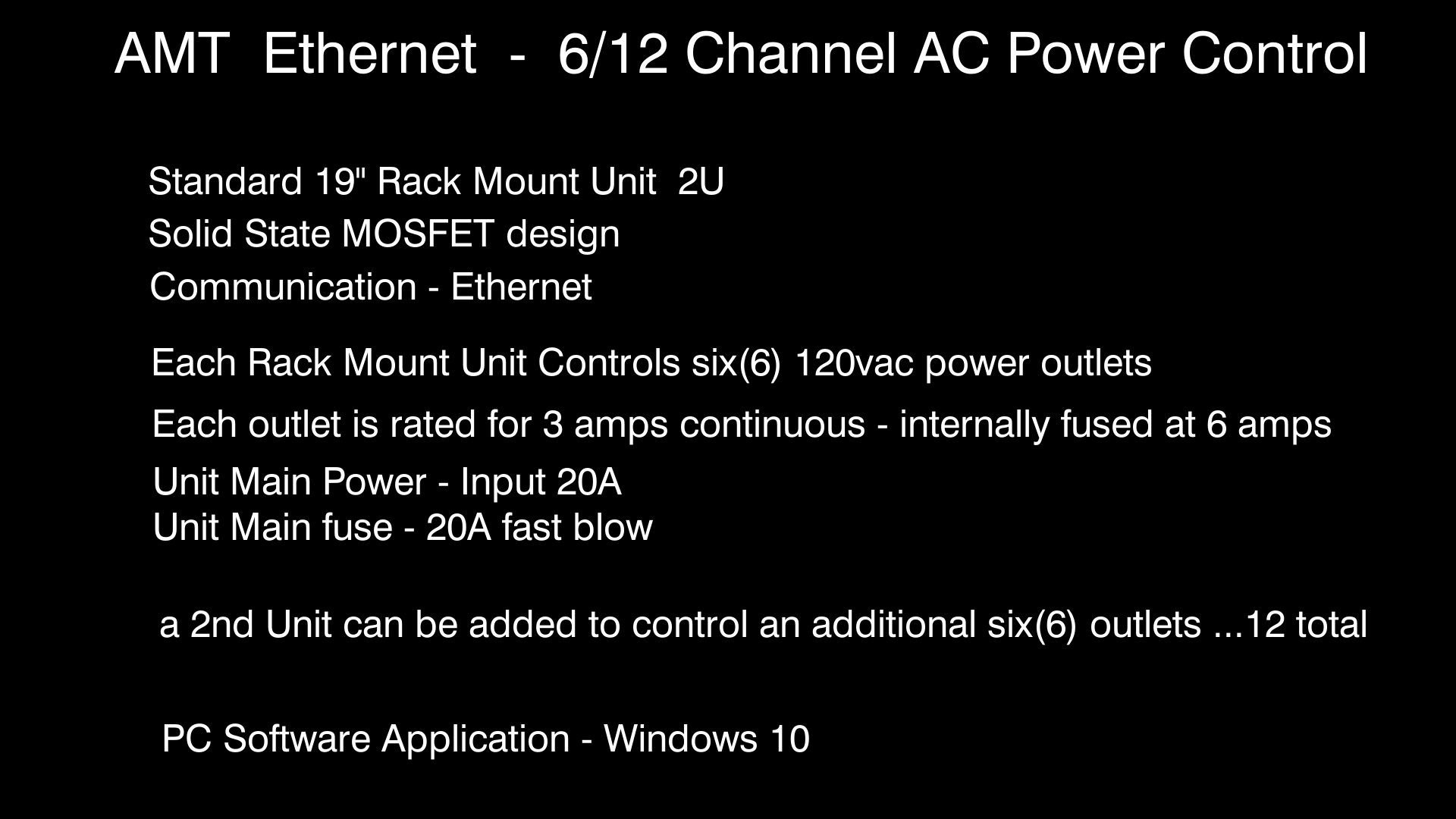

Specifications

Form Factor	Standard 19" Rack Mount – 2U
Design	Solid State MOSFET
Communication	Ethernet
Outlets per Unit	Six (6) 120VAC Power Outlets
Outlet Rating	3 Amps continuous – internally fused at 6 Amps
Unit Main Power Input	20A
Unit Main Fuse	20A Fast Blow
Expandable	Second unit adds six (6) more outlets – 12 total
PC Software Application	Windows 10 / Windows 11
