Flux Drop-Jet System
Single-Drop Fluid Dispensing • Selective Soldering • Designed & built in the USA
Overview

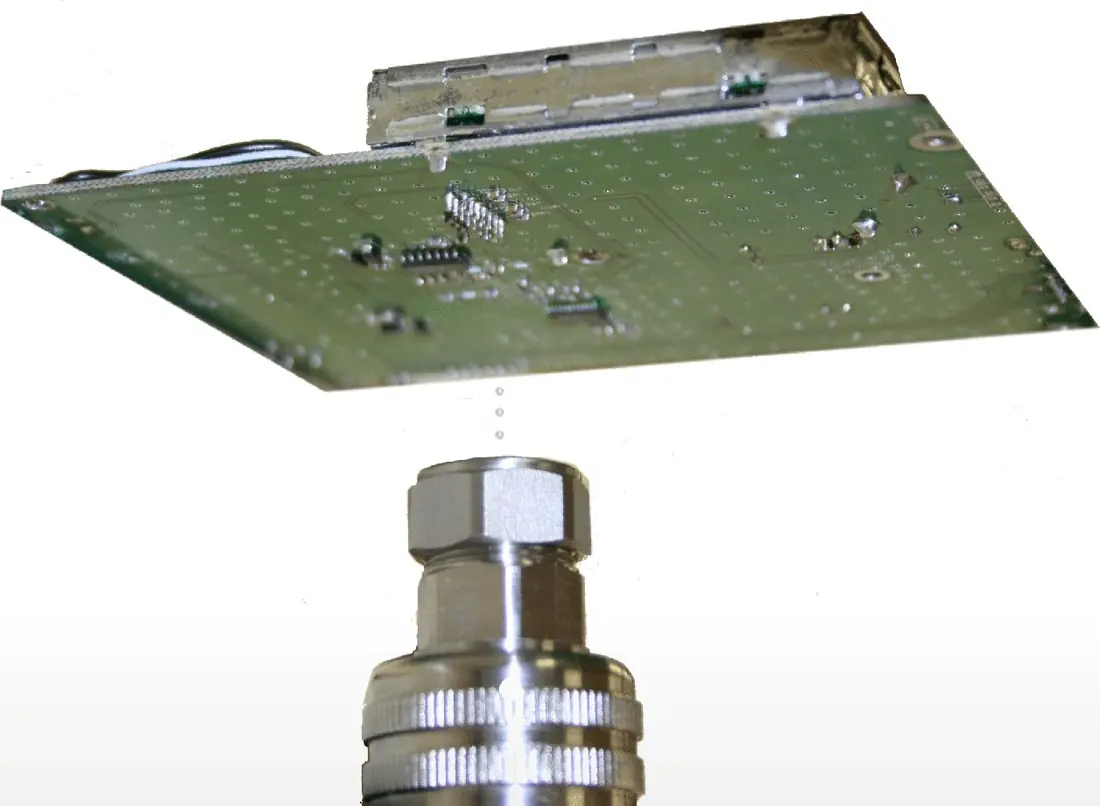

Designed to control and dispense a single drop of fluid. A separate electronic module provides
the on/off and drop frequency control of the drop-jet head. The source liquid flux material is
stored in a pressurized container (1.5 to 15 psi) which supplies fluid to the drop-jet head.
The system integrates readily into a variety of selective soldering machines and applications.
Capabilities
- Precise application of flux to target
- Compatible with all known flux chemistries
- Fully maintainable and serviceable
- Modular design allows servicing without tools
- Retrofits into selective soldering machines
Technical Specifications
| Nozzle Orifice Size |
130 µm (standard) * |
| Typical Drop Size |
2 mm to 4 mm (adjustable) * |
| Drop Frequency |
0 to 90 Hz |
| Power (supplied by user) |
24 VDC, 0.75 A |
| On/Off Control Input |
24 VDC |
| Drop Frequency Control Input |
0–20 mA (standard) * |
| Fluid Supply Pressure |
1.5 to 15 psi (pressurized container) |
| Drop-Jet Head Dimensions |
3.25" L × 1.4" diameter
(without fittings or mounting)
|
| Control Module Dimensions |
3.25" H × 5.5" W × 2.75" D
(DIN rail mount)
|
* Other specifications were available on request.

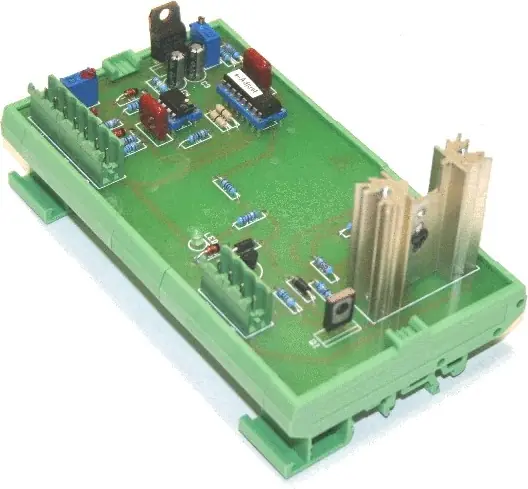

Control Module
